17 Ft 10 Brushes Fully Automated Rug Washing Equipment

17 Ft Fully 10 Brushes Automated Rug Washing Equipment

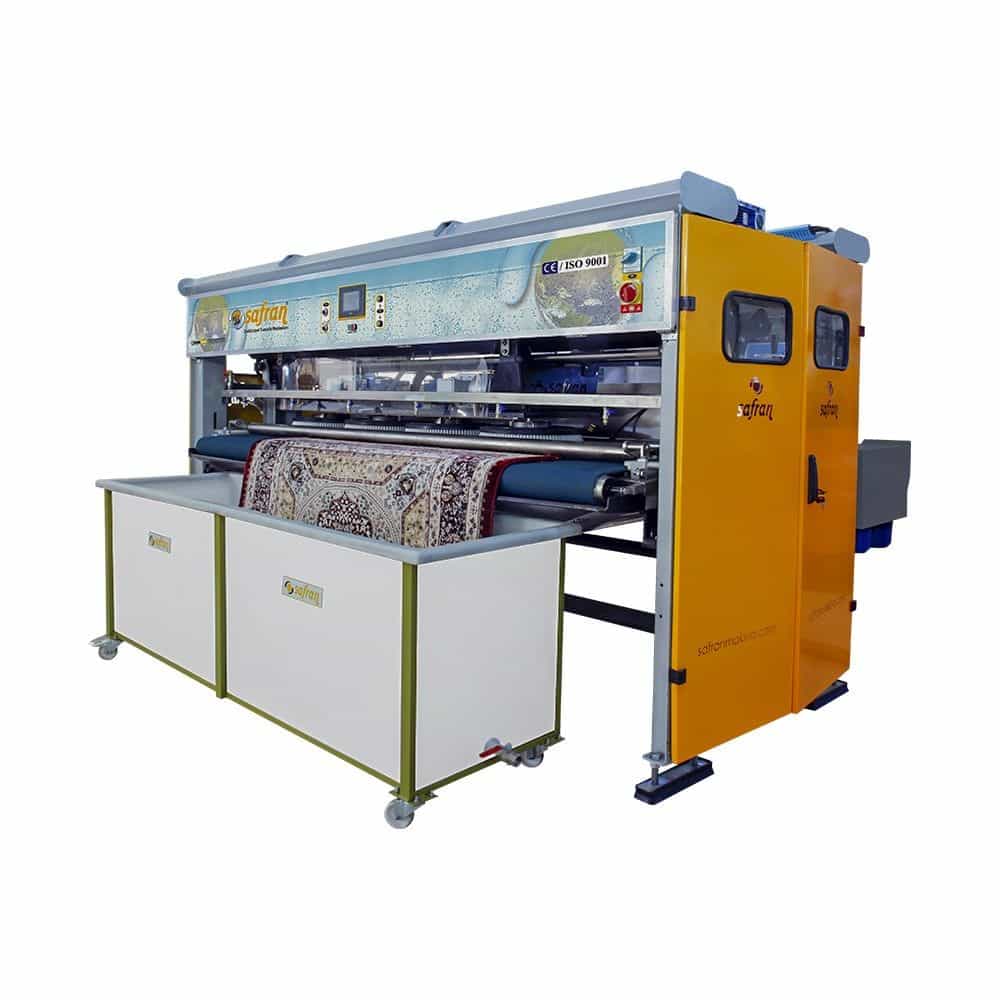

DMC4500G12 features an AUTOMATIC RUG WASHING MACHINE - this is the ultimate solution in rug washing and cleaning services where work is very busy and intensive. It is a high-performance, automatic rug washing equipment designed to meet the needs of large-scale operations. It offers a daily capacity of more than 200 living room-sized rugs. this automatic washing system saves a bundle with costs, time and labor. Jobs are being performed in a shorter time with high efficiency and labor. This machine is very easily controlled by mechanically automated systems.

This is an automatic washing machine with a rug width capacity of up to of 14.76 ft. It is one of the most preferred models among automatic washing machines used worldwide including the United States.

The DMC4500G12 Automatic rug washing machine has 2 rows of 5 rug brushes each with a diameter of 1.31 FT each. These 10 powerful brushes are in two rows, a roller brush, and a sub-washing brush, providing an all-encompassing cleaning solution for both thick and delicate rugs. The machine’s robust build, adjustable pressure system, and touch-screen control ensure excellent cleaning efficiency and long-term durability.

These brushes rotate in a circular motion, that allows you to wash the rug in most efficient and effective way. Each brush is driven by a separate electric motor.You can choose to rotate the circular brushes in clockwise and counter clockwise direction upon demand at any time, which increases the service life span.

Behind the rug cleaning brushes, there is a spiral brush to fluff up the rug fibers while performing the first rinse process.

The pressure of these brushes can be adjusted manually using the brush pressure adjustment levers. Right behind the roller (rotary) rinsing brush there is a rinsing system that removes excess detergent and water from the washed rug and rinses again. The rinsing system operates with nozzles, on both sides of the system. Additionally, there is a roller brush that washes the backing of the rug.

The rug washer control panel is conveniently located in the mid section of the equipment for easy operator access and therefore,there is no need to go to each side of the equipment in case when intervention is required during the rug wash.

DMC4500G12 Automatic Rug Washing Machine has a shell thickness of 4mm/.04 cm. ,a thicker shell than its competitors, providing many years of service without stretching and weakening.

The DMC4500G12 has automatic system with a mechanical double clutch drive, a special system for adjusting the brush print on the automatic rug washing machine. This system does not need air, which means no compressor is required to operate so it can be used for years without any issues, such as air leakage, felt removal and brush imbalance.

Our machines are men and women user friendly and operate with ease and comfort and will save your business time, space, labor, electricity, water and detergents in every wash.

All our Automatic Rug Washing Machines have the following features:

• They are manufactured from -4mm/.04 cm thick laser cut sheet metal and hot galvanized to provide a stainless steel finish.
• There is a digital control panel. It notifies you of electrical problems encountered by the machine in writing on its own screen, so you do not need to check each part separately to find the error.
• There is a brush pressure adjustment system. This system has a mechanical transmission with double clutch. So it can be used for many years without any problems, such as air leakage, felt removal and brush imbalance. In addition, to  insure the durability and long-term use of the system, the thickness is made - 12 mm/1.2 cm.
• There is a solid anti-slip rib conveyor to keep the detergent and water in the washing area as much as possible.
• Depending on the Rug soil level, the belt is adjustable
• Has the function of changing the direction of the brushes
• Has the function of washing the bottom of the rug.
• The system moves left and right and the speed is adjustable.
• It is possible to roll the Rug.
• Thanks to its compact design, it takes up less space.
• There is a pool for waste water. (During washing, water and detergent will not spill on the floor and wet the surrounding area)
• Our Automatic Rug Washing Machines come complete with a polyethylene coated pool for loading (waiting) rugs and a rug trolley

•  User friendly and both male and female personnel can easily use the equipment

  6 powerful circular brushes, a roller brush, and a sub-washing brush, providing an all-encompassing cleaning solution for both thick and delicate rugs. The machine’s robust build, adjustable pressure system, and touch-screen control ensure excellent cleaning efficiency and long-term durability.

Key Features:

• Motor Power: 22.6 KW (30.30 HP)
• Voltage: 380V / 50Hz
• Max Rug Cleaning Width: 14.76 ft
• Brush System: 5 double row circular brushes and 2 cylinder brushes.
• Band speed:2368-2798 Sq. FT/H (220-260 Sq. Meter/H)
• Control Board: PLC Control System (Programmable Logic Controller) Touch Screen
• Pressure System: Adjustable from the control panel for various carpet types
• Touch Screen Control: User-friendly interface for easy operation

Technical Specifications:

• Dimensions: 17 ft (520 CM) L x 7.87 ft (240 CM) W x 7.2 ft (220 CM) H
• Weight:5896lbs/2680kg
• Water Consumption: 1.32-1.58 Gal/Min (5-6 Liter /Min) Adjustable Manually for efficient rinsing
• Material: Metal

Lead time on this equipment is 6-9 weeks

This product can not be returned
