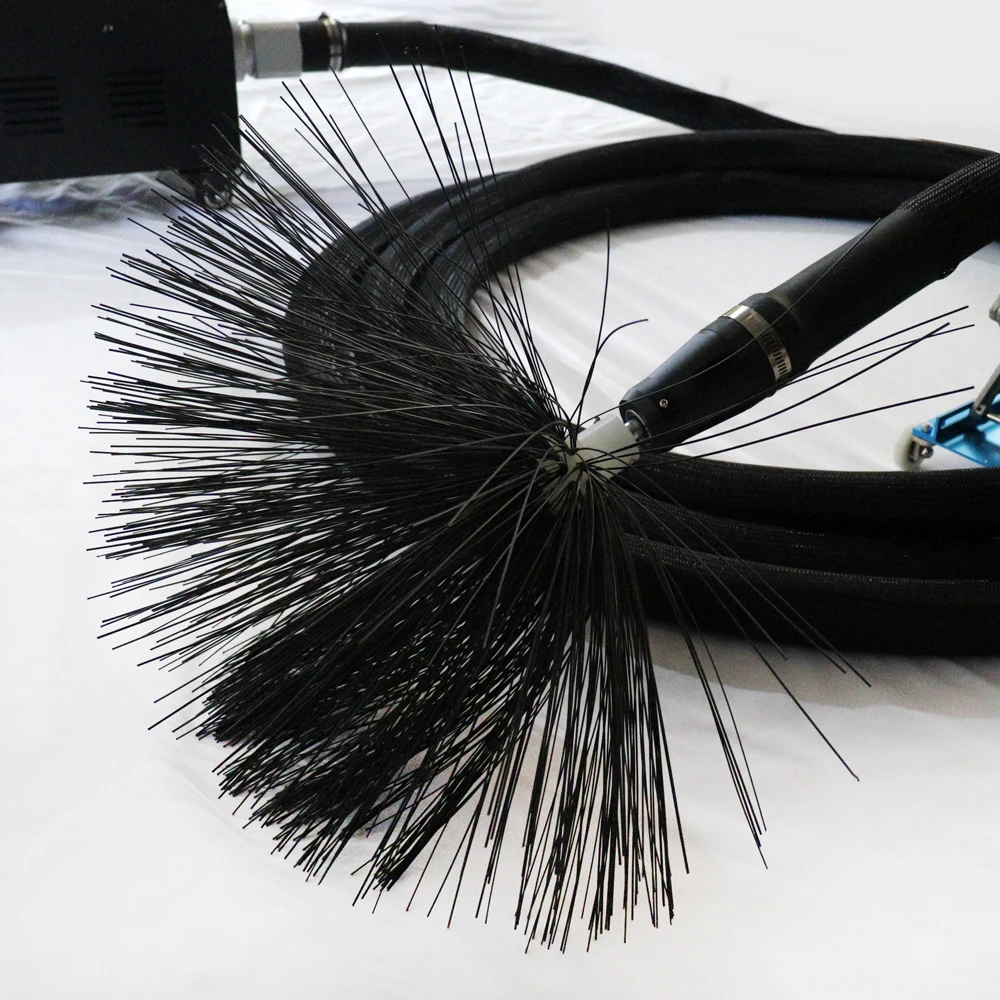

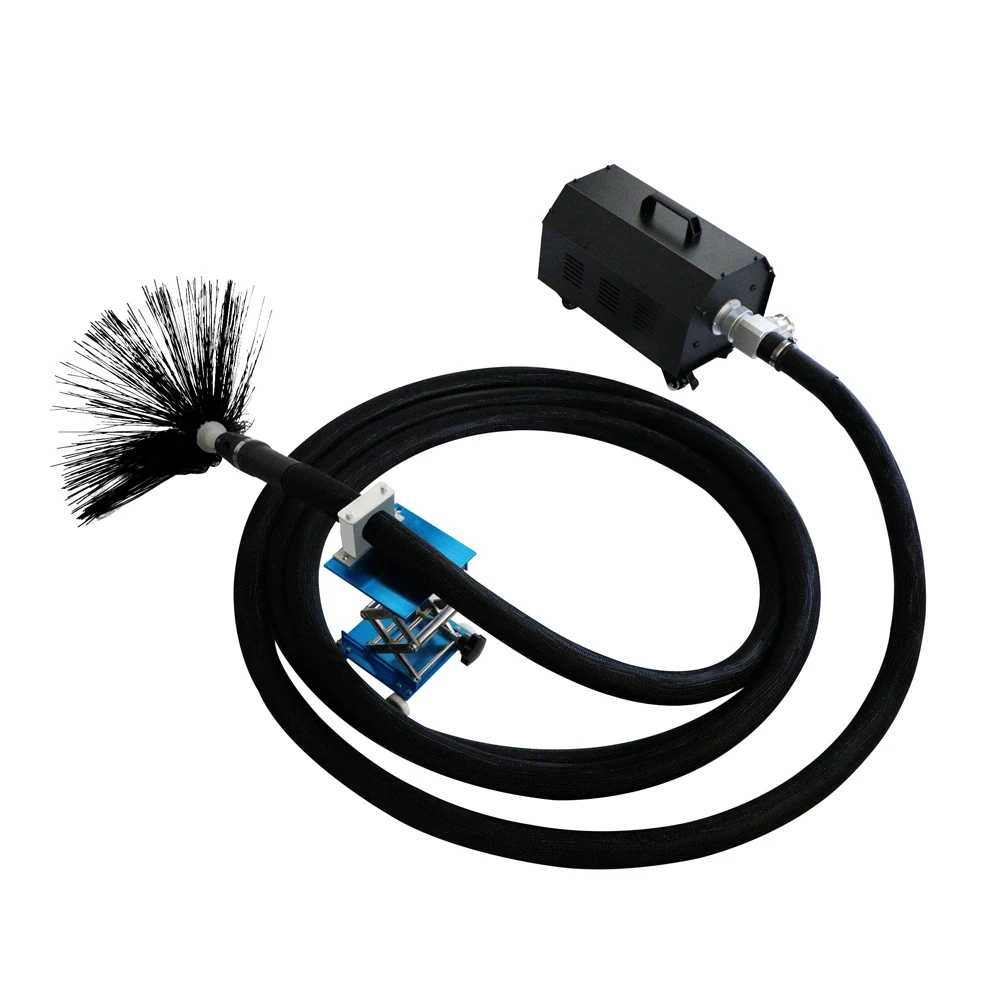

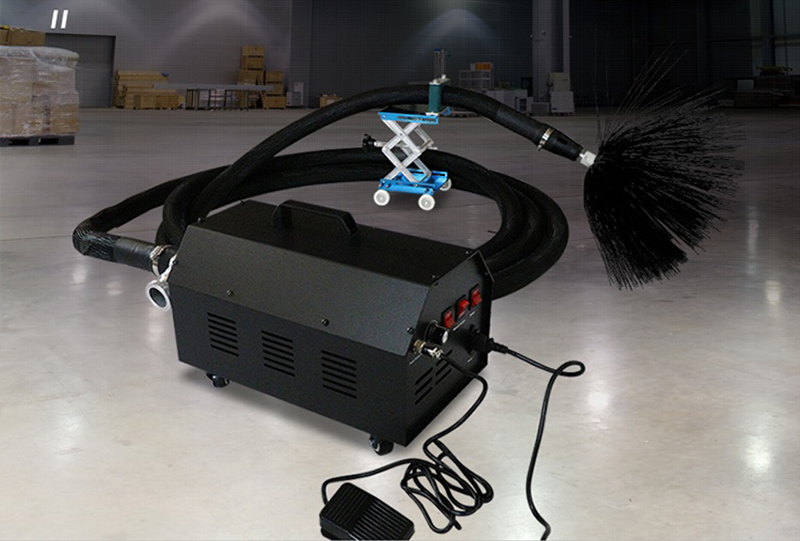

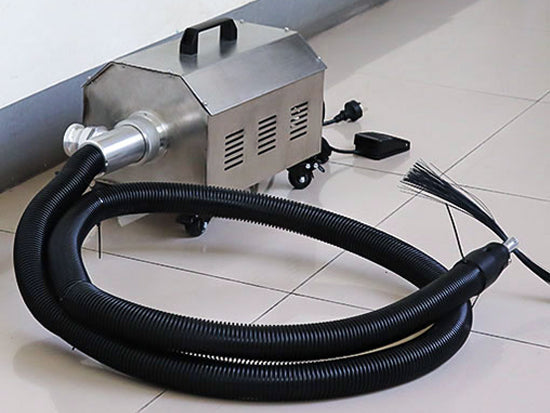

Flexible Shaft Air Duct Cleaning Equipment with Vacuum Port

Flexible Shaft Air Duct Cleaning Equipment with Vacuum Port Item#  DMFS-1B

Introduction

DMFS-1B Flexible Shaft Cleaning Machine is mainly used for cleaning small air duct and vents with turns and bends of 90 degrees and larger and diameter less than 20". The dirt in the pipeline rises under the action of brush rotating and enters the dust collecting device.

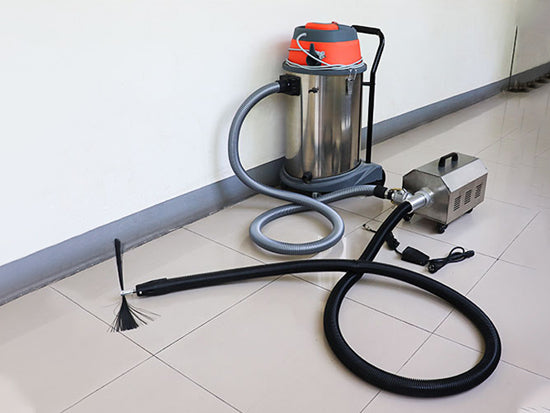

It has a vacuum dust collection port which can connect with vacuum cleaner directly, lifting and sucking dust at the same time, increasing cleaning effect and efficiency. You can attach to use your own dry vacuum. Threaded Standard Vacuum port size: Inner Diameter 1.57", Outer Diameter 1.89".

Structure and features:

1.Easy to carry and easy to operate.

2.The flexible shaft is unique in design, the joint is frictionless, reducing heat and effectively protecting the flexible shaft.

3.Flexible shaft can rotate forward and reverse, 0-1500 rotations/min speed adjustable, the cleaning is more thorough.

6. Equipped with a foot switch for easier operation.

Structure and features



Introduction

DMSFS-1B flexible shaft duct cleaning machine is mainly used for cleaning the small horizontal and vertical air duct with diameter less than ø500mm. The dirt in the pipeline rises under the action of brush rotating and enters the dust collecting device to achieve the purpose of cleaning.

Structure and features

The flexible shaft is unique in design, the joint is frictionless, reducing heat and effectively protecting the flexible shaft.

Aluminum dust suction connector, more sturdy and durable.

Nylon brushes of different sizes available for different duct sizes (100mm-500mm), cleaning the duct without damaging the duct.

The control box can control the flexible shaft to rotate forward and reverse adjust the rotation speed (0-1500r/min adjustable), so the cleaning is more thorough.

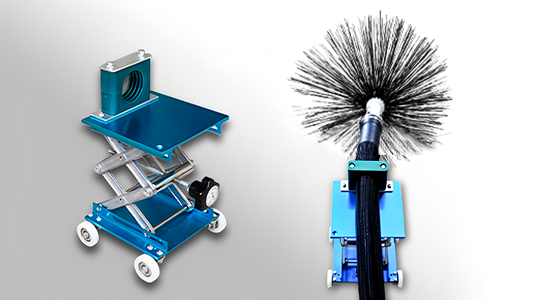

Special design lifting support, so the shaft height is adjustable (able the brush to clean 100-500mm high ducts) and the shaft can go forward and backward.

It has a vacuum dust collection port which can connect with vacuum cleaner directly, lifting and sucking dust at the same time, increasing cleaning effect and efficiency. You can use your own vacuum.Equipped with a foot switch for easier operation and maneuver

360° omni-directional wheel, easy to move here and there.

What's Included

Warranty:   one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair and/or replace spare parts.

2. Spare Parts: Most of our spare parts are compatible with international standard. While, we offer spare parts all year round. Technical support is available when needed.
